Interfacing NTC Thermistor With Arduino

Welcome to this beginner-friendly Arduino tutorial on the ntc thermistor. By the end of the guide, you'll wire the module to an Arduino UNO, flash a short sketch, and read live values on the Serial Monitor — no prior electronics experience required.

What you'll learn

• How the module works in plain language

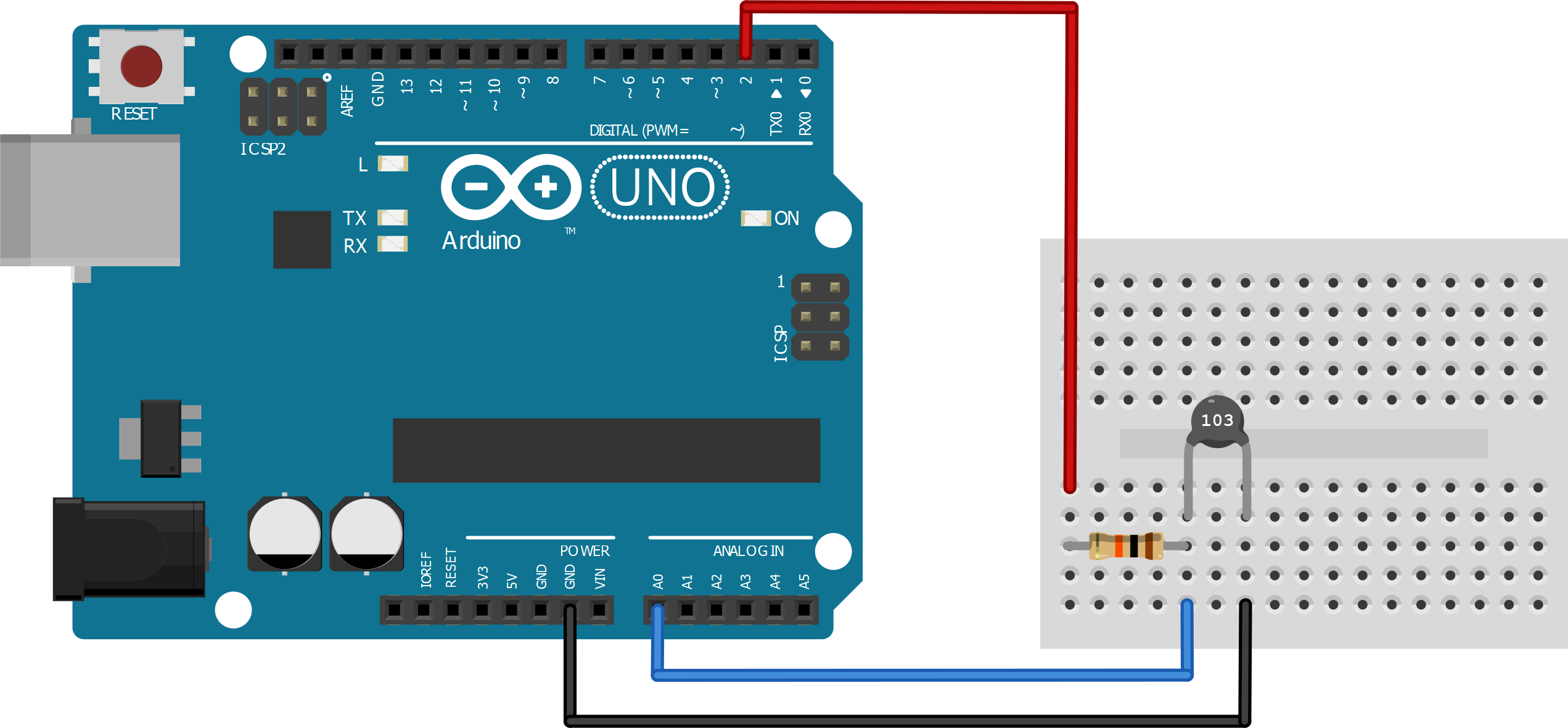

• The exact parts you need and how to wire them safely
• The full Arduino IDE sketch with comments
• Common issues and how to fix them

Arduino code

Open the Arduino IDE, paste the sketch below into a new file, install any libraries the sketch #includes (Tools → Manage Libraries), select your board and COM port, then click Upload.

/*!
 * @file        Arduino_NTC_Interface.ino
 * @brief       Interfacing NTC Thermistor With Arduino
 * @author      Jobit Joseph
 * @copyright   Copyright (c) 2022 Semicon Media Pvt Ltd (https://circuitdigest.com)
 */

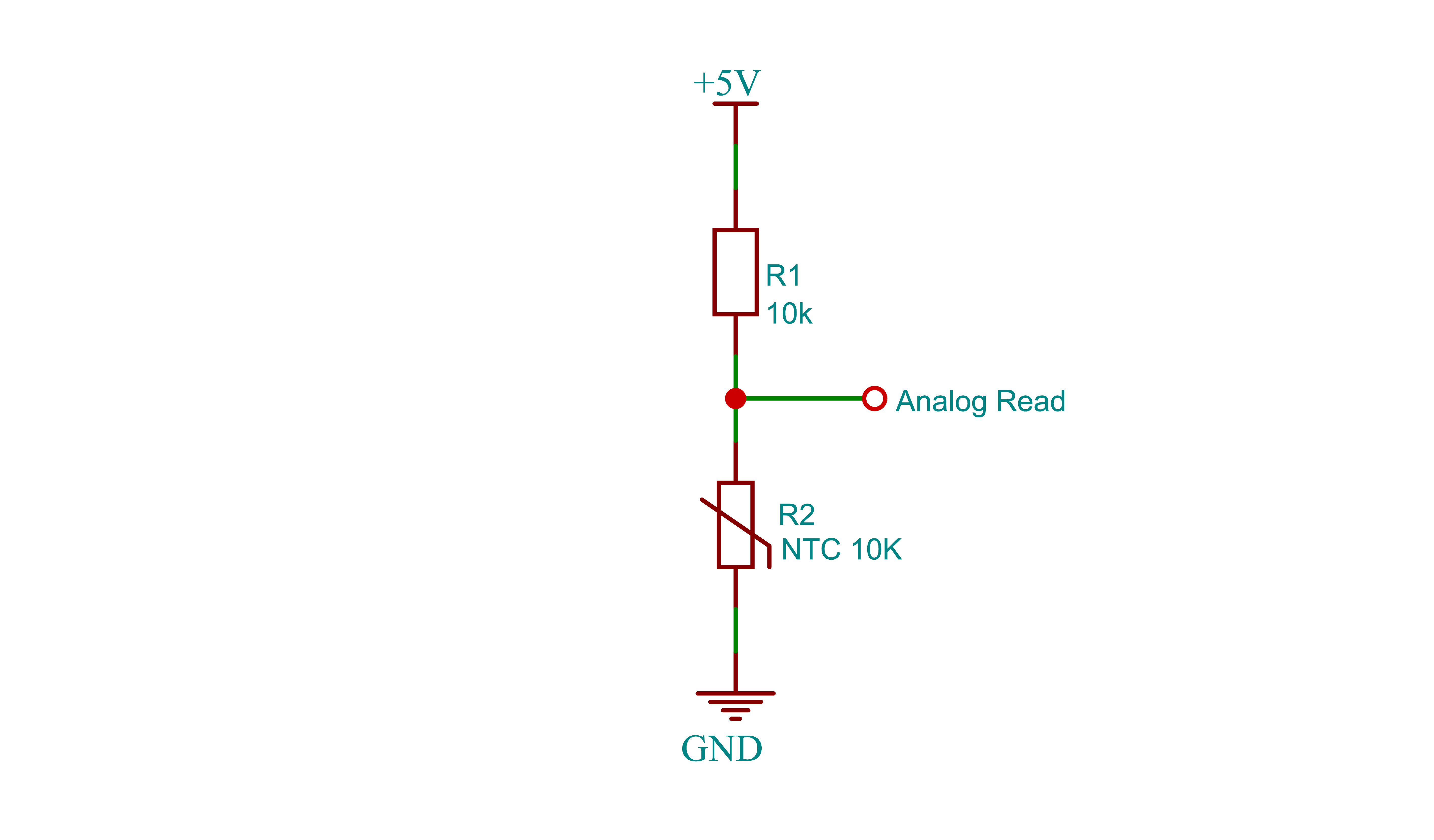

#define ntc_pin A0         // Pin,to which the voltage divider is connected
#define vd_power_pin 2        // 5V for the voltage divider
#define nominal_resistance 10000       //Nominal resistance at 25⁰C
#define nominal_temeprature 25   // temperature for nominal resistance (almost always 25⁰ C)
#define samplingrate 5    // Number of samples
#define beta 3950  // The beta coefficient or the B value of the thermistor (usually 3000-4000) check the datasheet for the accurate value.
#define Rref 10000   //Value of  resistor used for the voltage divider
int samples = 0;   //array to store the samples
void setup(void) {
  pinMode(vd_power_pin, OUTPUT);
  Serial.begin(9600);   //initialize serial communication at a baud rate of 9600
}

void loop(void) {
  uint8_t i;
  float average;
  samples = 0;
  // take voltage readings from the voltage divider
  digitalWrite(vd_power_pin, HIGH);
  for (i = 0; i < samplingrate; i++) {
    samples += analogRead(ntc_pin);
    delay(10);
  }
  digitalWrite(vd_power_pin, LOW);
  average = 0;
  average = samples / samplingrate;
  Serial.println("\n \n");
  Serial.print("ADC readings ");
  Serial.println(average);

  // Calculate NTC resistance
  average = 1023 / average - 1;
  average = Rref / average;
  Serial.print("Thermistor resistance ");
  Serial.println(average);

  float temperature;
  temperature = average / nominal_resistance;     // (R/Ro)
  temperature = log(temperature);                  // ln(R/Ro)
  temperature /= beta;                   // 1/B * ln(R/Ro)
  temperature += 1.0 / (nominal_temeprature + 273.15); // + (1/To)
  temperature = 1.0 / temperature;                 // Invert
  temperature -= 273.15;                         // convert absolute temp to C

  Serial.print("Temperature ");
  Serial.print(temperature);
  Serial.println(" *C");

  delay(2000);
}

How it works

The sketch initialises serial communication and the ntc thermistor driver in setup(), then in loop() it samples the sensor at a regular interval and prints the result to the Serial Monitor at 9600 baud. Open the Serial Monitor (Ctrl+Shift+M) after upload to see live readings.

Troubleshooting checklist

• No readings: verify the baud rate in Serial Monitor matches the sketch (usually 9600).
• Garbage characters: wrong baud rate or loose GND wire.
• Library not found: install the exact library referenced in the #include line via Library Manager.
• Sensor not detected (I²C): run an I²C scanner sketch to confirm the address.

What to build next

Once the basic readout works, try logging values to an SD card, sending them over Wi-Fi with an ESP32, or pushing them to a Blynk IoT dashboard. Pair this module with our simulator round-up to prototype the circuit before soldering.
