16x2 LCD Arduino — Wiring, LiquidCrystal Code & Proteus

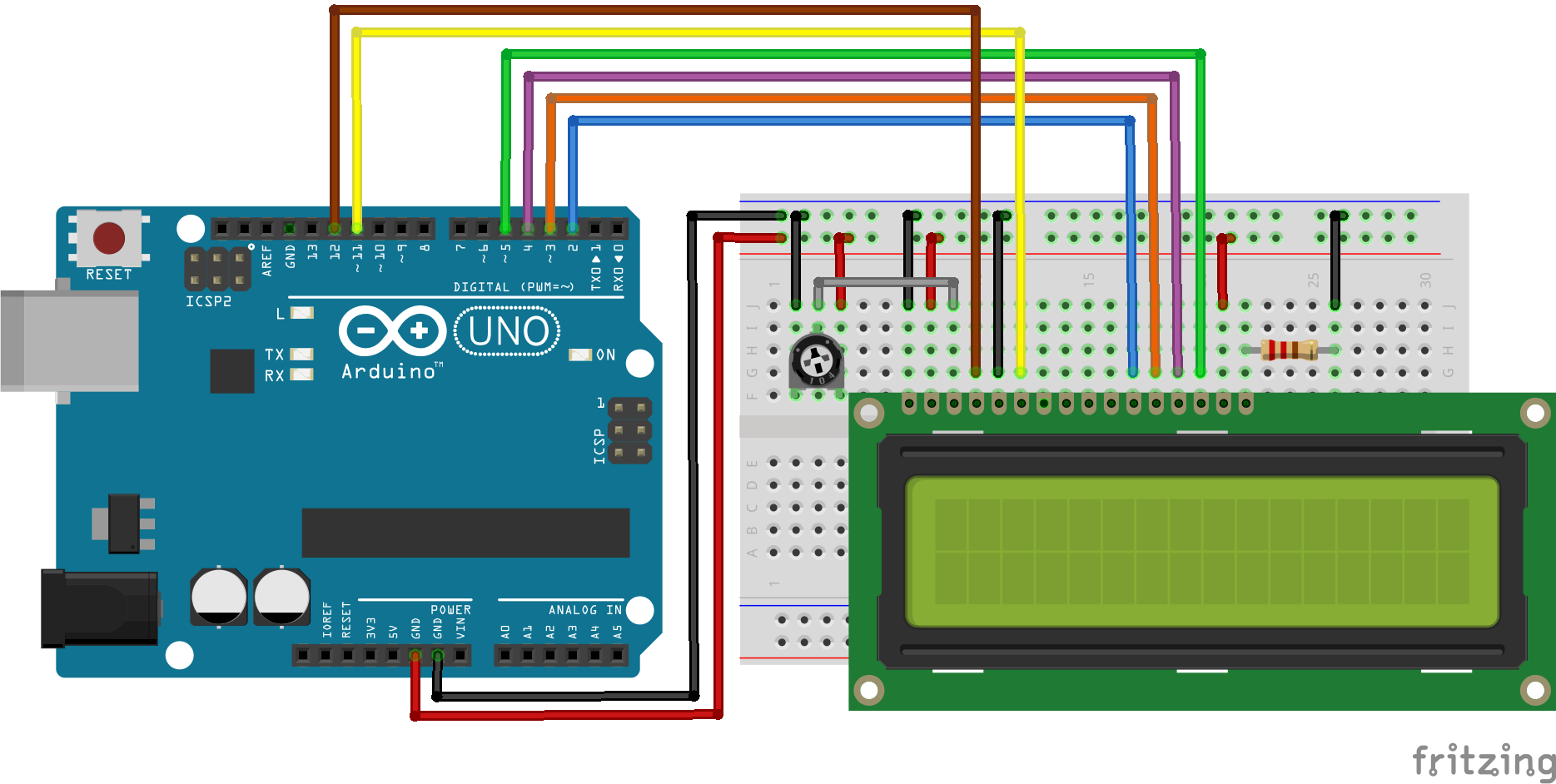

Wiring a 16x2 LCD Arduino display is the fastest way to give an Arduino project a real user interface. In this tutorial we wire an HD44780 16x2 LCD to Arduino Uno in 4-bit mode, use the built-in LiquidCrystal library, and simulate the circuit in Proteus before you solder anything.

Welcome to this beginner-friendly Arduino tutorial on the 16x2 lcd. By the end of the guide, you'll wire the module to an Arduino UNO, flash a short sketch, and read live values on the Serial Monitor — no prior electronics experience required.

Need this built for you? I do custom Arduino, ESP32 and Proteus projects from $15.

What you'll learn

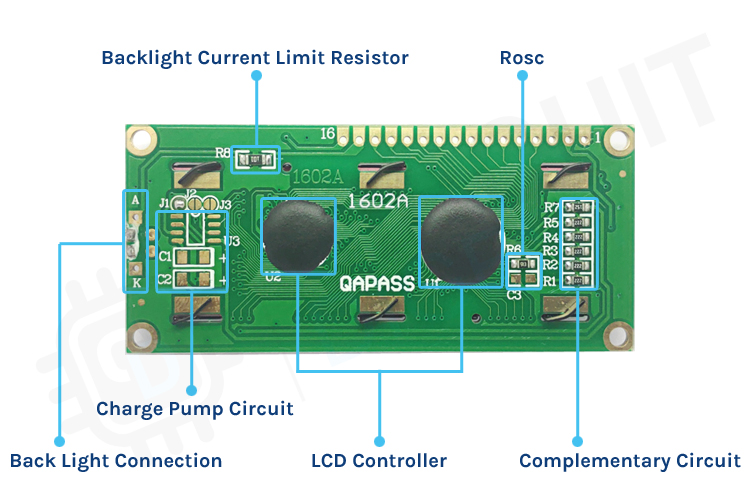

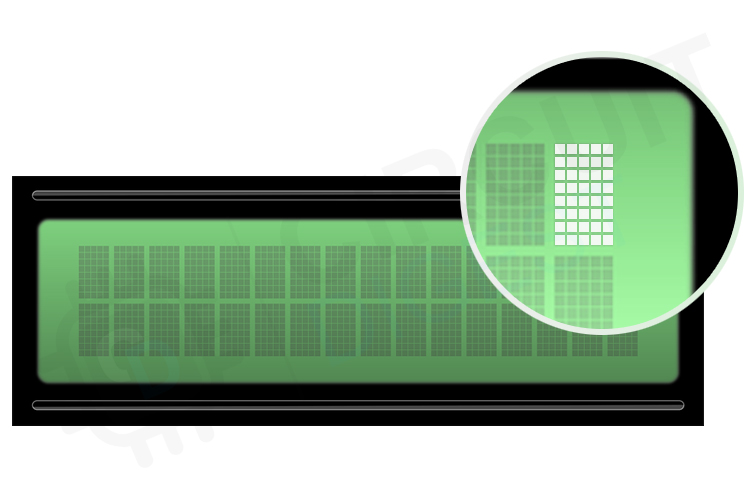

• How the module works in plain language

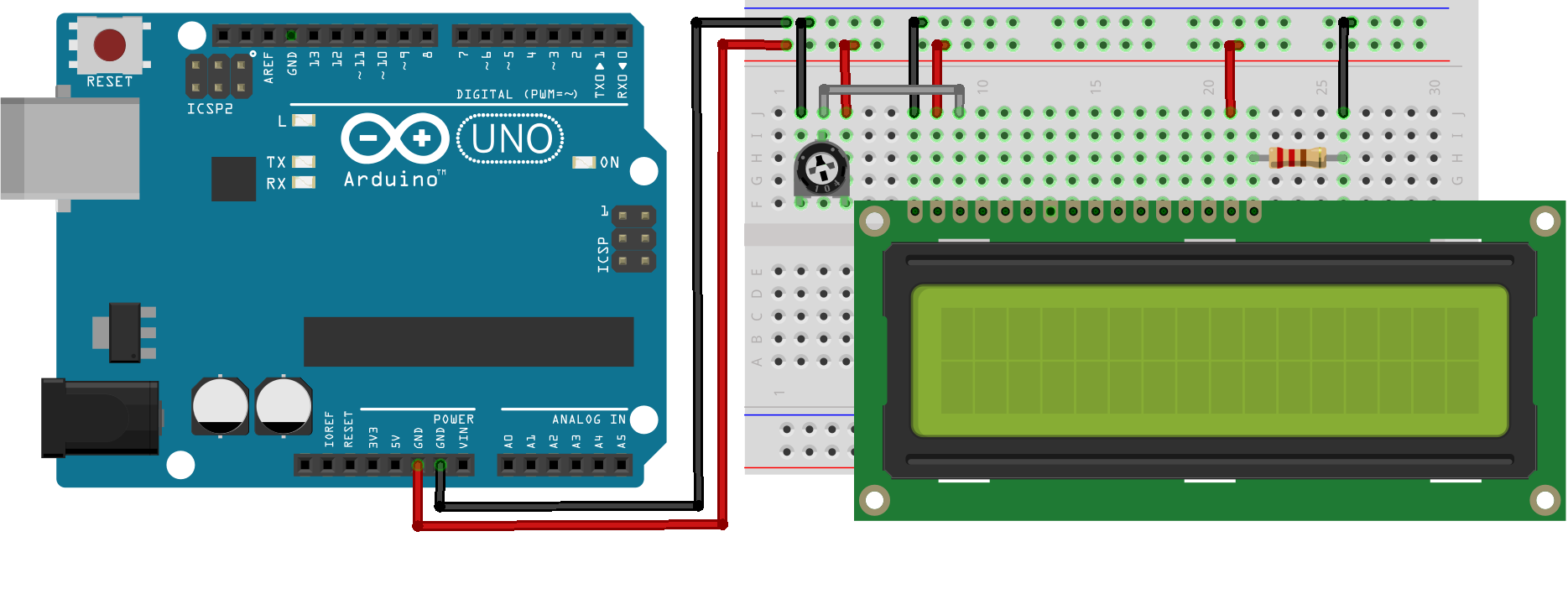

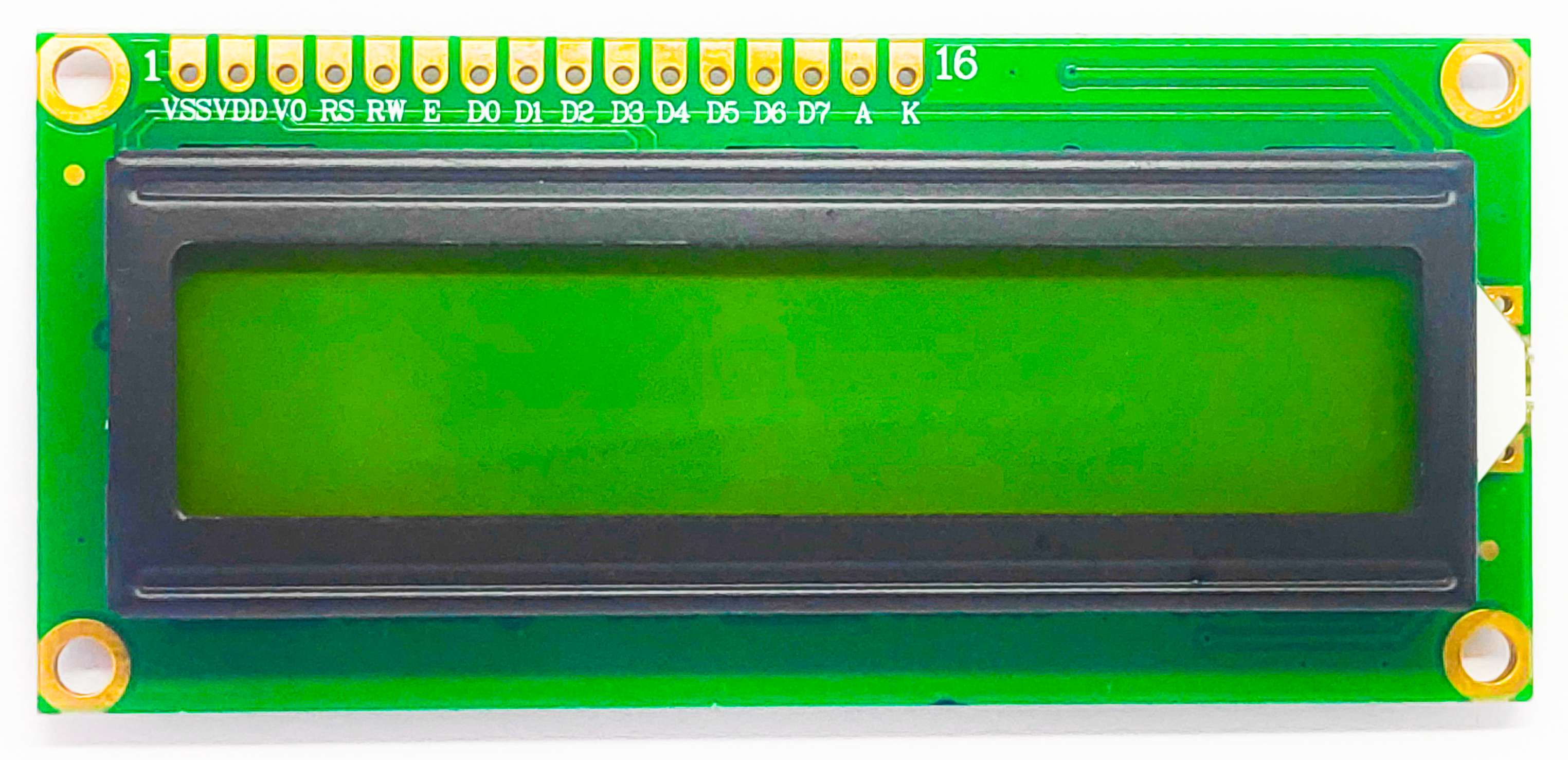

• The exact parts you need and how to wire them safely
• The full Arduino IDE sketch with comments
• Common issues and how to fix them

Arduino code

Open the Arduino IDE, paste the sketch below into a new file, install any libraries the sketch #includes (Tools → Manage Libraries), select your board and COM port, then click Upload.

// include the library code:
#include <LiquidCrystal.h>

// initialize the library by associating any needed LCD interface pin
// with the arduino pin number it is connected to
const int rs = 12, en = 11, d4 = 2, d5 = 3, d6 = 4, d7 = 5;
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

void setup() {
  // set up the LCD's number of columns and rows:
  lcd.begin(16, 2);
  // Print a message to the LCD.
  lcd.print(" Circuit Digest!");
  delay(2000);
  for (int positionCounter = 0; positionCounter < 16; positionCounter++) {
    // scroll one position right:
    lcd.scrollDisplayRight();
    // wait a bit:
    delay(150);
  }
  lcd.clear();
  lcd.setCursor(6, 0);
  lcd.print("Count!");
  // print the number of seconds since reset:
}

void loop() {
  for (int i = 0; i < 10; i ++)
  {
    lcd.setCursor(8, 1);
    // print the number of seconds since reset:
    lcd.print(i);
    delay(1000);
  }
}

How it works

The sketch initialises serial communication and the 16x2 lcd driver in setup(), then in loop() it samples the sensor at a regular interval and prints the result to the Serial Monitor at 9600 baud. Open the Serial Monitor (Ctrl+Shift+M) after upload to see live readings.
