Interfacing Dual Axis Joystick Module with Arduino

Welcome to this beginner-friendly Arduino tutorial on the dual axis joystick. By the end of the guide, you'll wire the module to an Arduino UNO, flash a short sketch, and read live values on the Serial Monitor — no prior electronics experience required.

What you'll learn

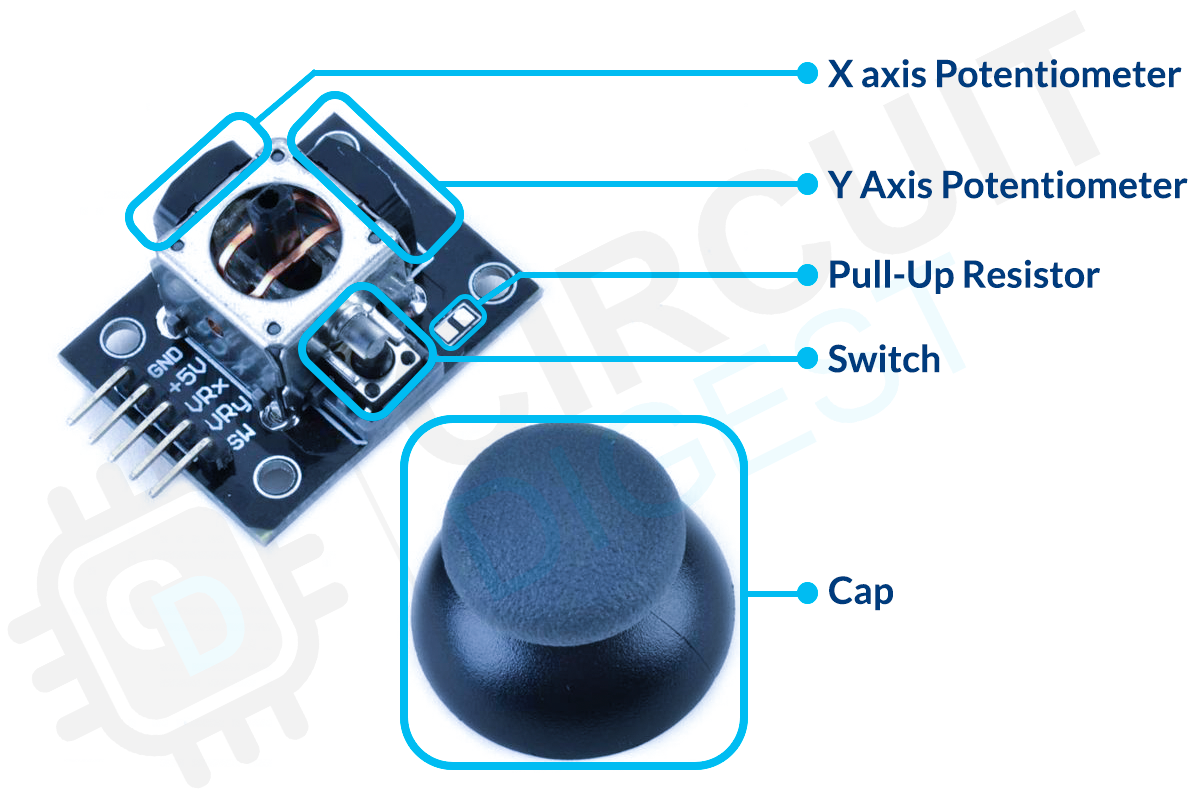

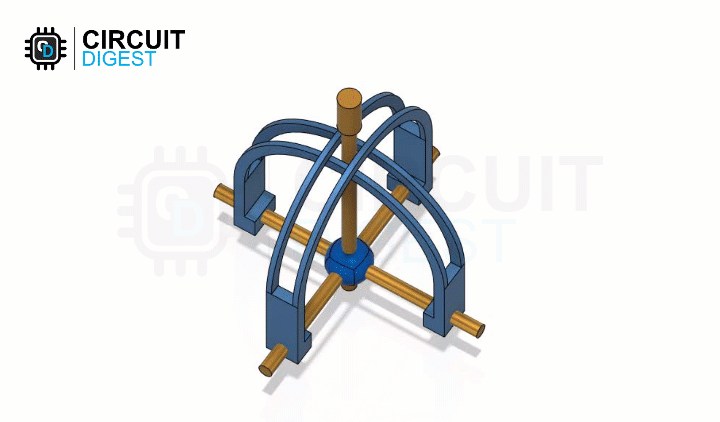

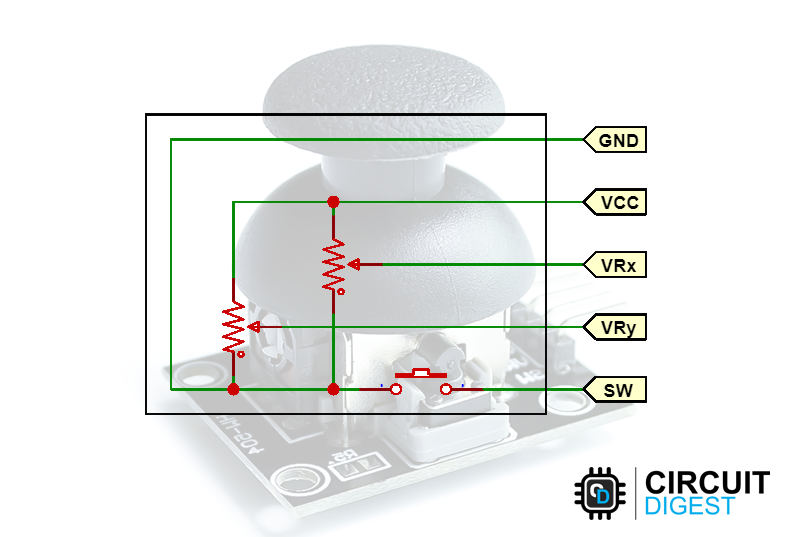

• How the module works in plain language

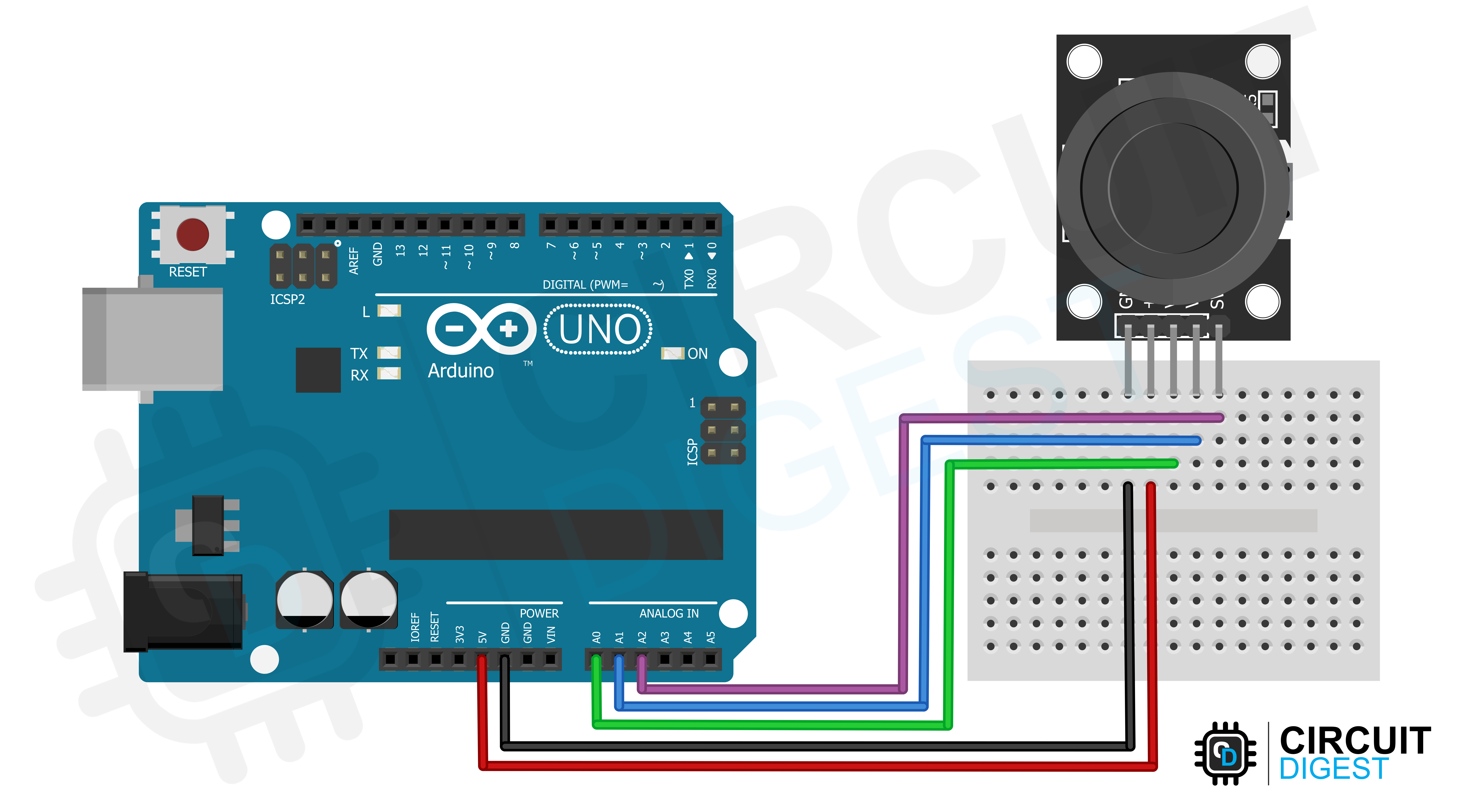

• The exact parts you need and how to wire them safely
• The full Arduino IDE sketch with comments
• Common issues and how to fix them

Arduino code

Open the Arduino IDE, paste the sketch below into a new file, install any libraries the sketch #includes (Tools → Manage Libraries), select your board and COM port, then click Upload.

// Arduino Dual Axis Joystick Example

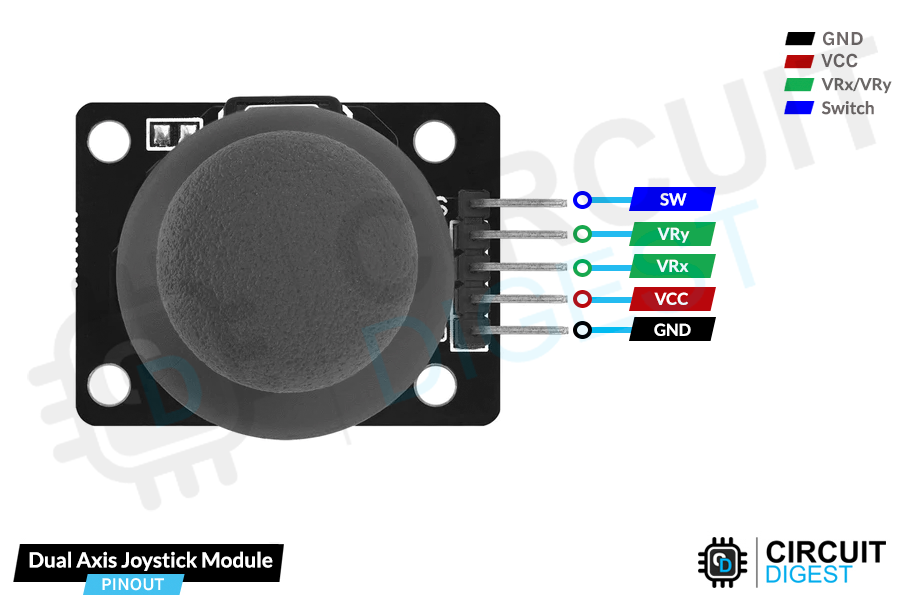

#define Xaxis_pin A0 // Arduino pin connected to the VRx Pin
#define Yaxis_pin A1 // Arduino pin connected to the VRy Pin
#define SW_pin A2 // Arduino pin connected to the SW Pin
void setup()
{
  pinMode(SW_pin, INPUT);
  digitalWrite(SW_pin, HIGH);
  Serial.begin(9600);
}

void loop()
{
  Serial.print("X-axis: ");
  Serial.print(analogRead(Xaxis_pin));
  Serial.print(" : ");
  Serial.print("Y-axis: ");
  Serial.print(analogRead(Yaxis_pin));
  Serial.print(" : ");
  Serial.print("Switch:  ");
  Serial.println(digitalRead(SW_pin));
  delay(200);
}

How it works

The sketch initialises serial communication and the dual axis joystick driver in setup(), then in loop() it samples the sensor at a regular interval and prints the result to the Serial Monitor at 9600 baud. Open the Serial Monitor (Ctrl+Shift+M) after upload to see live readings.

Troubleshooting checklist

• No readings: verify the baud rate in Serial Monitor matches the sketch (usually 9600).
• Garbage characters: wrong baud rate or loose GND wire.
• Library not found: install the exact library referenced in the #include line via Library Manager.
• Sensor not detected (I²C): run an I²C scanner sketch to confirm the address.

What to build next

Once the basic readout works, try logging values to an SD card, sending them over Wi-Fi with an ESP32, or pushing them to a Blynk IoT dashboard. Pair this module with our simulator round-up to prototype the circuit before soldering.
