Interfacing MAX4466 microphone amplifier module with Arduino

Welcome to this beginner-friendly Arduino tutorial on the max4466 microphone amplifier. By the end of the guide, you'll wire the module to an Arduino UNO, flash a short sketch, and read live values on the Serial Monitor — no prior electronics experience required.

What you'll learn

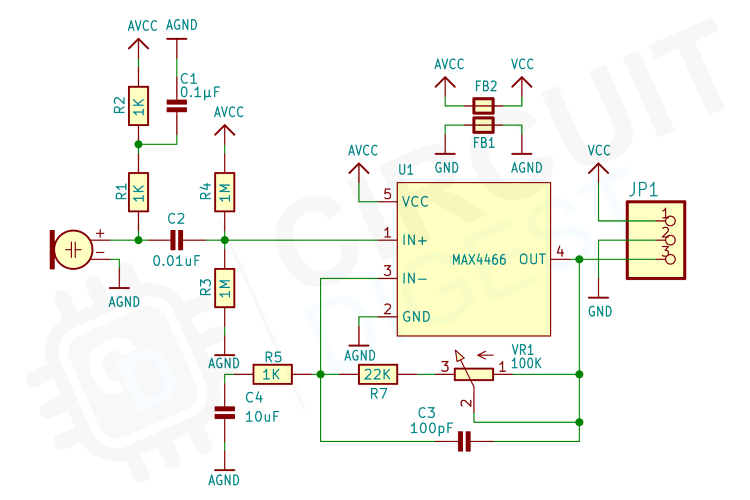

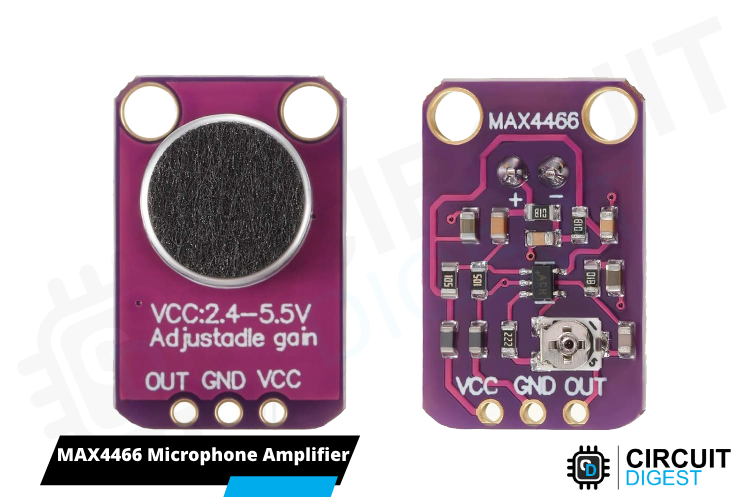

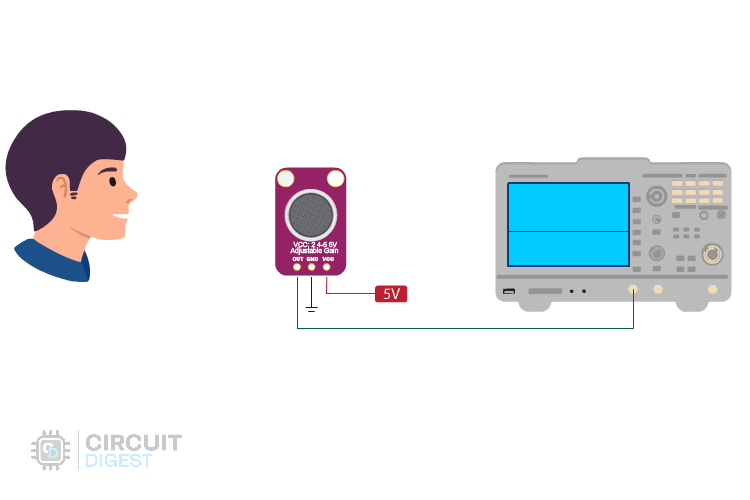

• How the module works in plain language

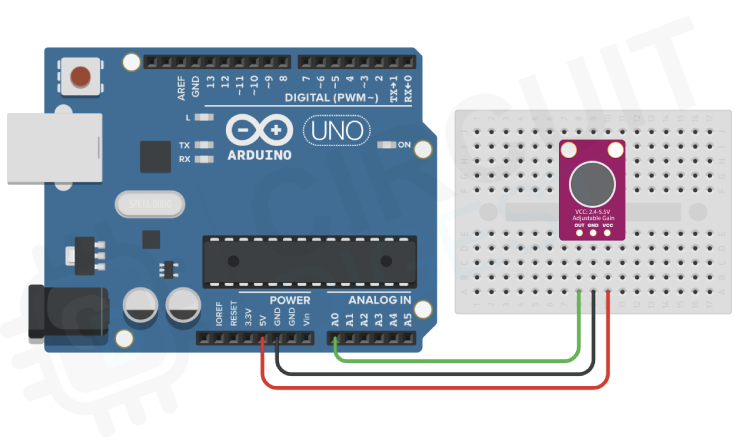

• The exact parts you need and how to wire them safely
• The full Arduino IDE sketch with comments
• Common issues and how to fix them

Arduino code

Open the Arduino IDE, paste the sketch below into a new file, install any libraries the sketch #includes (Tools → Manage Libraries), select your board and COM port, then click Upload.

const int sampleWindow = 50;  // Sample window width in mS (50 mS = 20Hz)
int const Input_Pin = A0;     // Preamp output pin connected to A0
unsigned int ADC_Value;
void setup() {
  Serial.begin(9600);
}

void loop() {
  unsigned long startMillis = millis();  // Start of sample window

  unsigned int PeakValue = 0;  // peak-to-peak level
  unsigned int InMax = 0;
  unsigned int InMin = 1024;
  // collect data for 50 mS and then plot data
  while (millis() - startMillis < sampleWindow) {
    ADC_Value = analogRead(Input_Pin);
    if (ADC_Value < 1024)  // toss out spurious readings
    {
      if (ADC_Value > InMax) {
        InMax = ADC_Value;  // save just the max levels
      } else if (ADC_Value < InMin) {
        InMin = ADC_Value;  // save just the min levels
      }
    }
  }
  PeakValue = InMax - InMin;  // max - min = peak-peak amplitude
  if (PeakValue < 30) {
    PeakValue = 0;
  }
  Serial.println(PeakValue);
}

How it works

The sketch initialises serial communication and the max4466 microphone amplifier driver in setup(), then in loop() it samples the sensor at a regular interval and prints the result to the Serial Monitor at 9600 baud. Open the Serial Monitor (Ctrl+Shift+M) after upload to see live readings.

Troubleshooting checklist

• No readings: verify the baud rate in Serial Monitor matches the sketch (usually 9600).
• Garbage characters: wrong baud rate or loose GND wire.
• Library not found: install the exact library referenced in the #include line via Library Manager.
• Sensor not detected (I²C): run an I²C scanner sketch to confirm the address.

What to build next

Once the basic readout works, try logging values to an SD card, sending them over Wi-Fi with an ESP32, or pushing them to a Blynk IoT dashboard. Pair this module with our simulator round-up to prototype the circuit before soldering.
