Arduino Seven Segment Display Interface

Welcome to this beginner-friendly Arduino tutorial on the seven segment display. By the end of the guide, you'll wire the module to an Arduino UNO, flash a short sketch, and read live values on the Serial Monitor — no prior electronics experience required.

What you'll learn

• How the module works in plain language
• The exact parts you need and how to wire them safely
• The full Arduino IDE sketch with comments
• Common issues and how to fix them

Hardware you'll need

Arduino code

Open the Arduino IDE, paste the sketch below into a new file, install any libraries the sketch #includes (Tools → Manage Libraries), select your board and COM port, then click Upload.

#include "SevSeg.h"
SevSeg sevseg;
void setup()
{
  //Set to 1 for single-digit display
  byte numDigits = 1;

  //defines common pins while using multi-digit display. Left for single digit display
  byte digitPins[] = {};

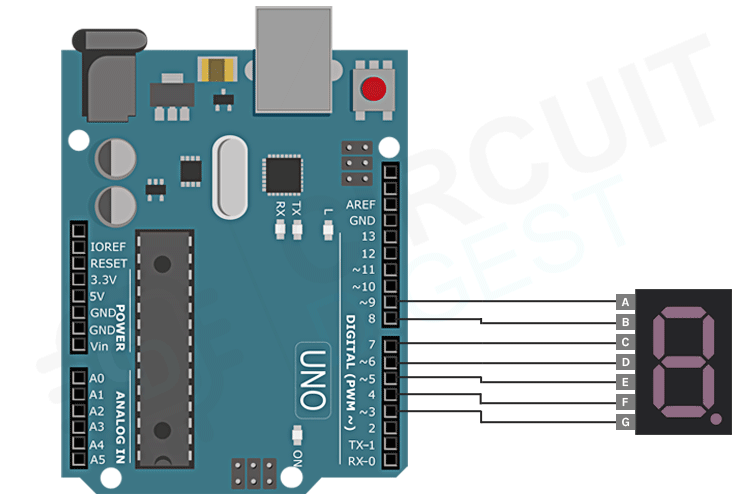

  //Defines Arduino pin connections in order: A, B, C, D, E, F, G, DP
  byte segmentPins[] = {9,8, 7, 6, 5, 4, 3, 2};

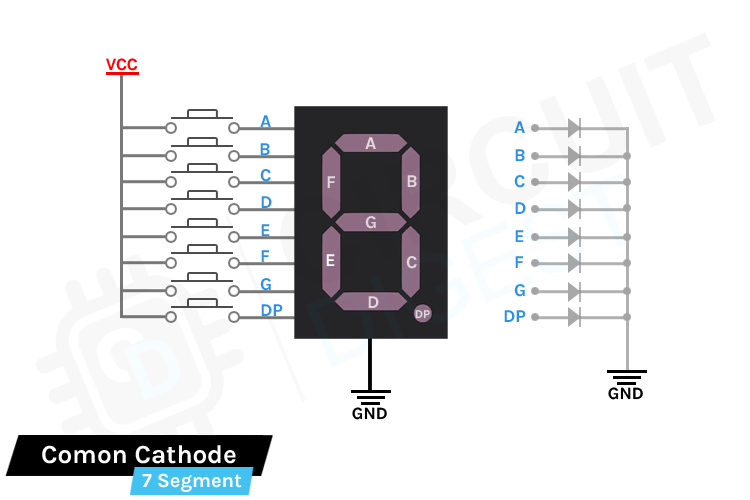

  byte displayType = COMMON_CATHODE; //Use COMMON_ANODE for Common Anode display

  bool resistorsOnSegments = true; //‘false’ if resistors are connected to common pin

  //Initialize sevseg object. Use COMMON_ANODE instead of COMMON_CATHODE for CA display
  sevseg.begin(displayType, numDigits, digitPins, segmentPins, resistorsOnSegments);

  sevseg.setBrightness(90);
}

void loop()
{

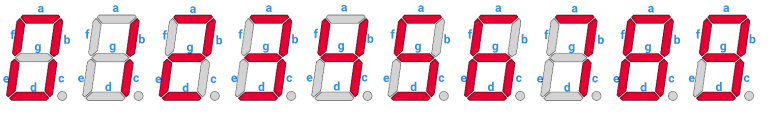

   //Display numbers 0-9 with 1 seconds delay
   for(int i = 0; i <= 10; i++)
   {
     if (i == 10)
{
 i = 0;
}
     sevseg.setNumber(i);
     sevseg.refreshDisplay();
     delay(1000);
   }
}

How it works

The sketch initialises serial communication and the seven segment display driver in setup(), then in loop() it samples the sensor at a regular interval and prints the result to the Serial Monitor at 9600 baud. Open the Serial Monitor (Ctrl+Shift+M) after upload to see live readings.

Troubleshooting checklist

• No readings: verify the baud rate in Serial Monitor matches the sketch (usually 9600).
• Garbage characters: wrong baud rate or loose GND wire.
• Library not found: install the exact library referenced in the #include line via Library Manager.
• Sensor not detected (I²C): run an I²C scanner sketch to confirm the address.

What to build next

Once the basic readout works, try logging values to an SD card, sending them over Wi-Fi with an ESP32, or pushing them to a Blynk IoT dashboard. Pair this module with our simulator round-up to prototype the circuit before soldering.
