Arduino Micro SD Card Module Project

Welcome to this beginner-friendly Arduino tutorial on the sd card. By the end of the guide, you'll wire the module to an Arduino UNO, flash a short sketch, and read live values on the Serial Monitor — no prior electronics experience required.

What you'll learn

• How the module works in plain language

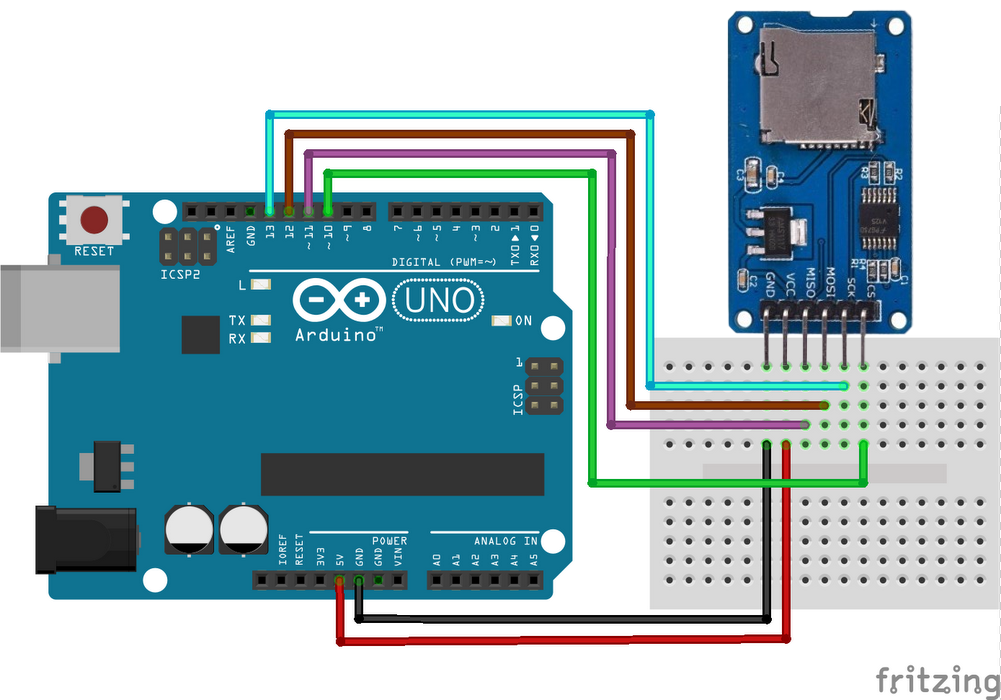

• The exact parts you need and how to wire them safely
• The full Arduino IDE sketch with comments
• Common issues and how to fix them

Hardware you'll need

Arduino code

Open the Arduino IDE, paste the sketch below into a new file, install any libraries the sketch #includes (Tools → Manage Libraries), select your board and COM port, then click Upload.

#include <SD.h>
const int chipSelect = 10;
File myFile;

void setup() {

  // Open serial communications and wait for port to open:
  Serial.begin(9600);

  // wait for Serial Monitor to connect. Needed for native USB port boards only:
  while (!Serial);


  check_and_create_file();
  write_text();
}

void loop() {

  // nothing happens after setup finishes.
}


void check_and_create_file()
{
  Serial.print("Initializing SD card...");

  /*Check if the SD card exist or not*/
  if (!SD.begin(chipSelect)) {
    Serial.println("initialization failed!");
    while (1);
  }

  Serial.println("initialization done.");

  if (SD.exists("data_log.txt"))
    Serial.println("data_log.txt exists.");

  else
  {
    Serial.println("data_log.txt doesn't exist.");


    /* open a new file and immediately close it:
      this will create a new file */

    Serial.println("Creating data_log.txt...");

    myFile = SD.open("data_log.txt", FILE_WRITE);

    myFile.close();

    /* Now Chec agin if the file exists in
      the SD card or not */

    if (SD.exists("data_log.txt"))
      Serial.println("data_log.txt exists.");

    else
      Serial.println("data_log.txt doesn't exist.");
  }
}


void write_text()
{
  myFile = SD.open("data_log.txt", FILE_WRITE);

  // if the file opened okay, write to it:
  if (myFile) {
    Serial.print("Writing to data_log.txt...");
    myFile.println("testing 1, 2, 3.");
    // close the file:
    myFile.close();
    Serial.println("done.");
  } else {
    // if the file didn't open, print an error:
    Serial.println("error opening data_log.txt");
  }

  // re-open the file for reading:
  myFile = SD.open("data_log.txt");
  if (myFile) {
    Serial.println("data_log.txt:");

    // read from the file until there's nothing else in it:
    while (myFile.available()) {
      Serial.write(myFile.read());
    }
    // close the file:
    myFile.close();
  } else {
    // if the file didn't open, print an error:
    Serial.println("error opening data_log.txt");
  }
}

How it works

The sketch initialises serial communication and the sd card driver in setup(), then in loop() it samples the sensor at a regular interval and prints the result to the Serial Monitor at 9600 baud. Open the Serial Monitor (Ctrl+Shift+M) after upload to see live readings.

Project ideas & applications

• Data loggers (temperature, humidity, GPS)
• Event recording systems
• Portable storage for embedded systems
• Projects needing large storage beyond Arduino’s memory

Troubleshooting checklist

• No readings: verify the baud rate in Serial Monitor matches the sketch (usually 9600).
• Garbage characters: wrong baud rate or loose GND wire.
• Library not found: install the exact library referenced in the #include line via Library Manager.
• Sensor not detected (I²C): run an I²C scanner sketch to confirm the address.

What to build next

Once the basic readout works, try logging values to an SD card, sending them over Wi-Fi with an ESP32, or pushing them to a Blynk IoT dashboard. Pair this module with our simulator round-up to prototype the circuit before soldering.
